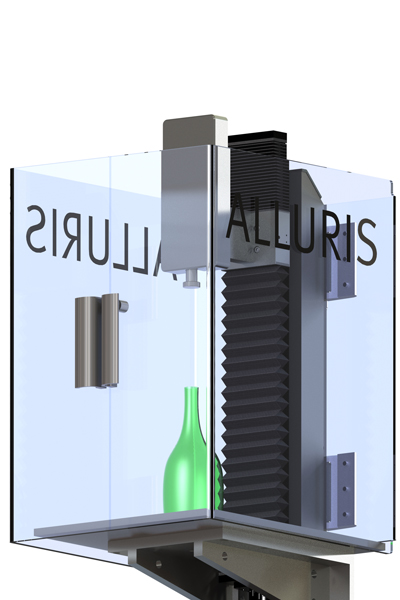

Protective device with two wide-opening wings made of transparent Plexiglas, suitable for 1-column universal and tensile testing machines of the FMT-310, FMT-311 and FMT-313 series.
Both wings can be equipped with additional safety hinges which are connected to the control unit of the testing machine.
Furthermore, it is possible to close the safety guard upwards with an additional bonnet.
The crystal-clear doors for protection against test objects jumping away or splintering enclose the entire test space of the machine.
The pitch and pivot of the two leaves are designed so that the test space is freely accessible from both the front and the side for setting up the tensile testing machine.
For safety gates with safety hinges in combination with the universal test stand FMT-313 or the control unit FMT-317CU, the maximum travel speed is automatically limited to 100mm/min when the safety gate is open, so that slow travel is possible during test set-up.
The switching behavior when the doors are opened can be configured in the test plan.
This makes it possible to always match the desired safety function to the respective test object and the test speed.
