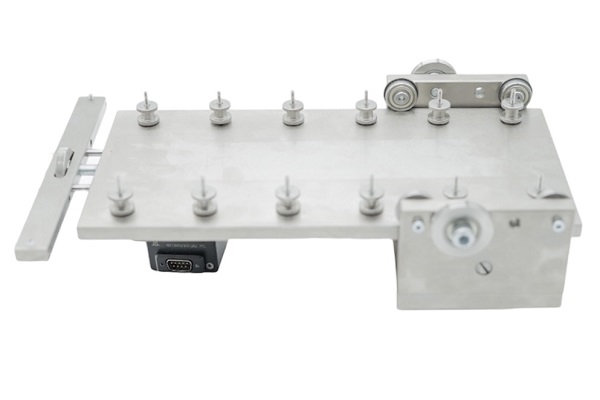

The device ensures that the angle remains constant at a 90° deduction.
The clamping plate is moved horizontally with 2 pull ropes.
The pull ropes are attached to the crosshead. Maximum load: 5kN Connection: M6 (above) and Af159 (below)
Other connections on request Sample width max.:
Max. 50 mm Sample length max.
Max. 280 mm Material: Steel nickel-plated Temperature range: 0 –70 °C
Other temperature ranges on request
Weight: 5.4kg
Scope of delivery: Device including fastening rod, steel cable and ferrules
