In the wire and harness manufacturing for the electrical & electronic industry, the reliability of each electrical connection determines the life span and quality of the final product. For testing the tensile strength of crimped, welded or soldered terminals we offer special instruments for standarized pull test.

A wire and harness manufacturer with customers in the field of automotive industry, space and aircraft industries or medical devices needs state of the art manufacturing and testing equipment as well as reliable testing methods to become an approved supplier. The most important mechanical testing is the measurement of tensile strength of the terminal connection, most commonly called pull testing or wire terminal testing.

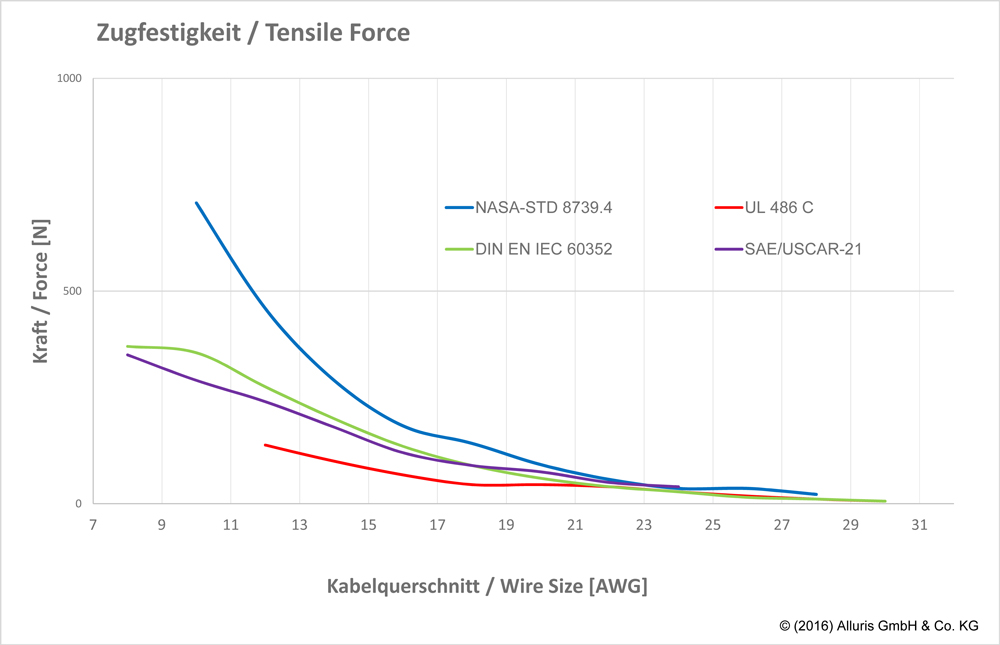

The acceptance criteria for tensile strength (in some standards also called pull-out force) are depending on the conductor size and the applied industry standard for the final product. If there is no product specific standards available IEC 60352-2 can be applied or for UL-listed products UL 486 C.

Both standards require testing until the rupture of the connector. For automobile industry, tensile strength or pull-out force is mostly specified according to SAE-USCAR-21 or manufacturer standards such as VW-60330.

Space and aircraft industries have their own (higher) requirements stated in NASA-STD-8739-4.

Our PC-software FMT-W_Connect for data transfer and test protocols for all Alluris pull tester include the acceptance criteria of several standards for limit settings.

Our PC-software FMT-W_Connect for data transfer and test protocols for all Alluris pull tester include the acceptance critera of several standards for limit settings.

Usually tensile tests are performed with universal material testing machines, with force and elongation as measuring data. Non of the related standards for pull out tests of conductor terminals require the elongation of the specimen as test result.

Therefore (motorized) benchtop pull tester are used to capture the tensile strength of terminals or welded wire-to-wire connections commonly.

A Load-cell of highest quality designed for the specific requirements in force measurement is used in each Alluris force gauge. Therefore the load cells are made in-house to assure the fine tuning between the sensor and the amplifier electronics to reach the highest accuracy of the measuring instrument. The entire design considers the perfect positioning of the force sensor in the center-line of applied force. This is to achieve a minimum of torque influence and force vectoring which have negative impact on the measuring reproducibility and overall accuracy.

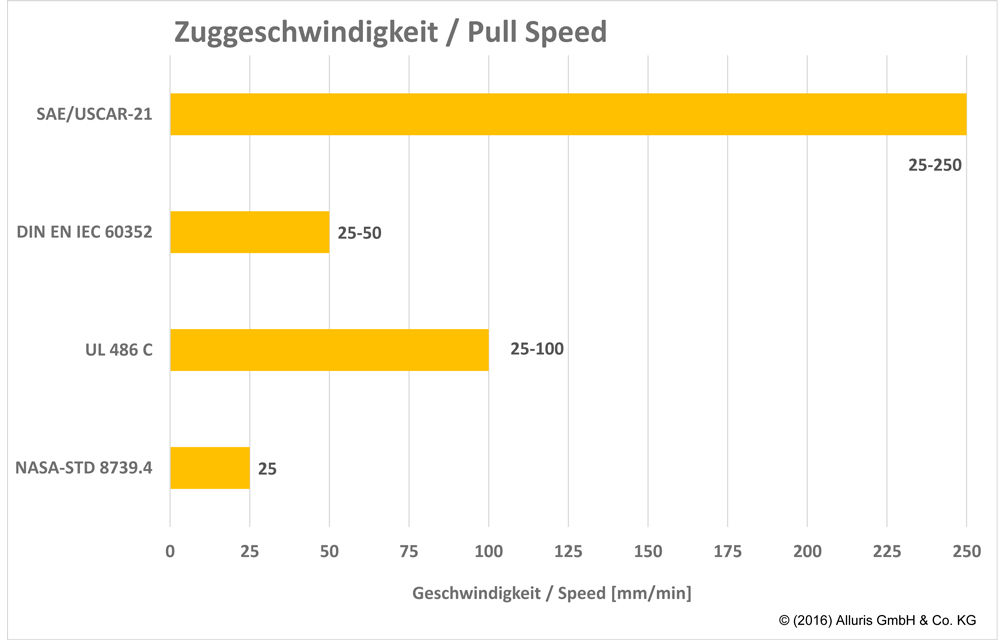

Most important for high reproducibility is a constant pull speed at increasing force as stated in all a.m. standards. This pullspeed can related to the specific standard to be set from 25mm/min to 250mm/min. Therefore our motorized pull testers are equipped with a strong stepper motor.

As the pull speed may vary due to the limited control capabilities of an operator with manually operated pull-testers, those instruments are limited to  non-conform tests related to strict standards.

Therefore we recommend manual wire terminal tester for quick check of machine or crimp tool settings only.

For approval testing of crimped conductor terminals, motorized pull-tester with selectable constant pull-speed is strongly recommended.

The Alluris pulltester is equipped with USB 2.0 - Interface and 10-pin I/O - Interface. These two interfaces serve devices for OK / NOG indication, or combined with a foot-switch and appropriate software they are used to transfer data straight into any PC application, such as CAQ, SAP, Oracle, SAGE or automated crimp presses. The USB 2.0 interface also transfers data to MSExcel.

With the related software (AddIn for MSExcel) the captured measuring results can easily be organized and within minutes a comprehensive report can be generated as PDF. All relevant test settings according the a.m. international standards are stored in the software and can be used for setting of force limits at the pull tester accordingly.

The measuring range of 0...500N and 0...1000N (for conductor size up to 10mm² / AWG 8) as well as the ergonomic design based on a heavy duty hardened steel plate are layed out for slipfree table top use.

The test specimen (terminals) are hold in a interchangeable terminal adapter with 12 different slot width from 0,5...6,0 mm to cover standard wire diameters. Alternative adapters can be found as accessories on the related product pages of the wire terminal tester.

Pull testers should be, as all force gauges recalibrated after 12 month latest. As manufacturer of force and torque measurement devices we operate an accredited calibration laboratory with highest quality and traceability to the standard of the german national metrology institute PTB (Physikalisch-Technische Bundesanstalt).

As the only ISO 17025:2005 accredited calibration laboratory in the world, we have a force reference standard measuring device (K-BNME) to calibrate pulltesters in horizontal position, applying DAkkS validated procedures. The calibration certificates therefore fulfill the high requirements of the IATF 16949:2016.

BS EN IEC 60352-2 Solderless connections. Crimped connections. General requirements, test methods and practical guidance (to obtain from: BSI Shop)

SAE-USCAR-21 Performance Specification for Cable-to-Terminal Electrical Crimps (to obtain from: SAE International)

VW-60330 Crimpverbindungen (to obtain free of charge from: Volkswagen AG - B2B Lieferantenportal)

NASA-STD-8739-4 Crimping, Interconnecting Cables, Harnesses and Wiring (to obtain free of charge from: NASA Technical Standard)

UL 486 C Splicing wiring connectors (to obtain from: UL Standards)
